diagrams
Generated with official AWS + Grafana icons from the verified service map. Click any diagram to enlarge.
the whole stack

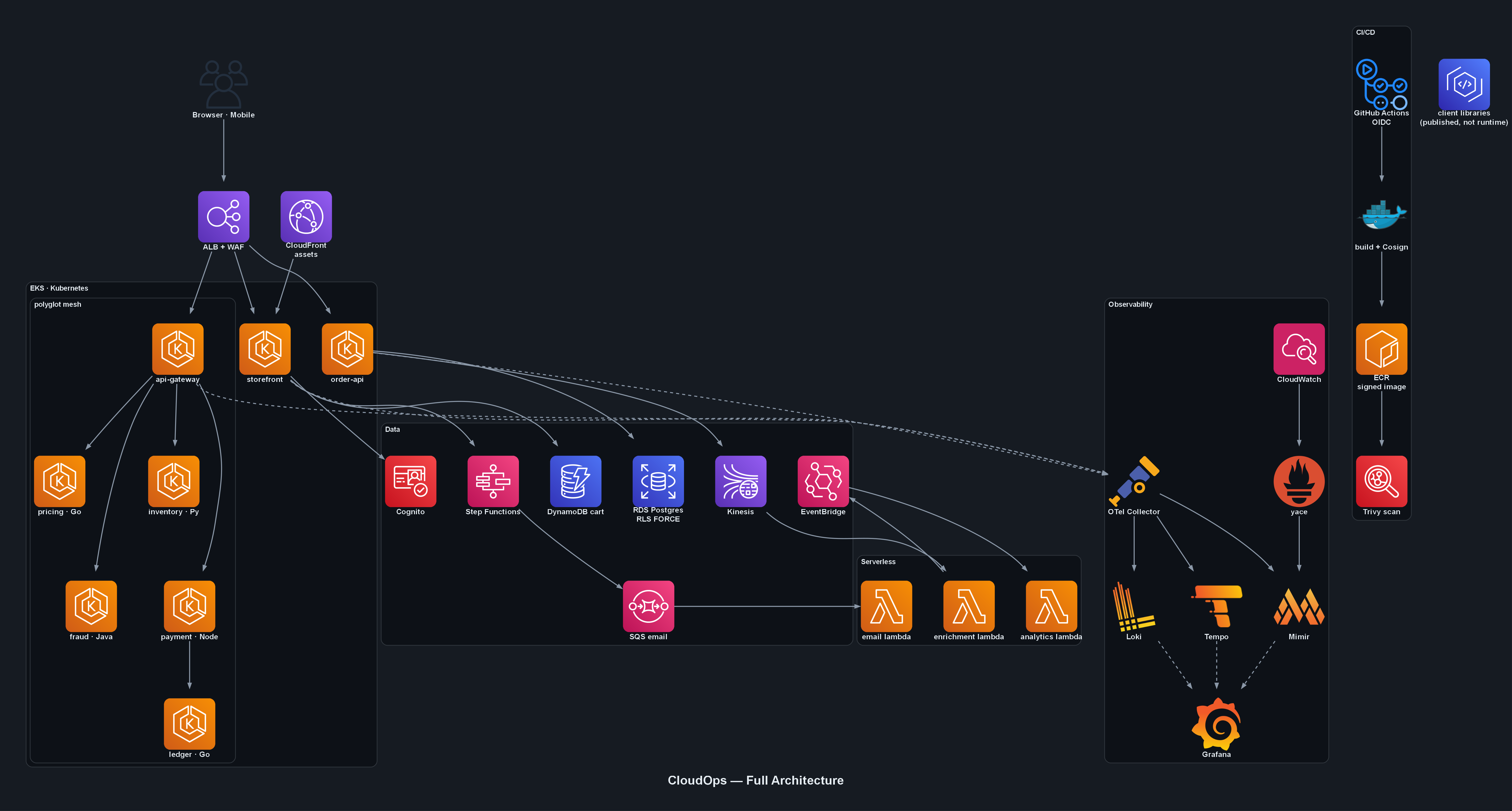

diagram 00 · overview
Edge, the EKS polyglot mesh, data services, serverless fan-out, and the LGTM observability stack — drawn from the verified service map.
data in motion

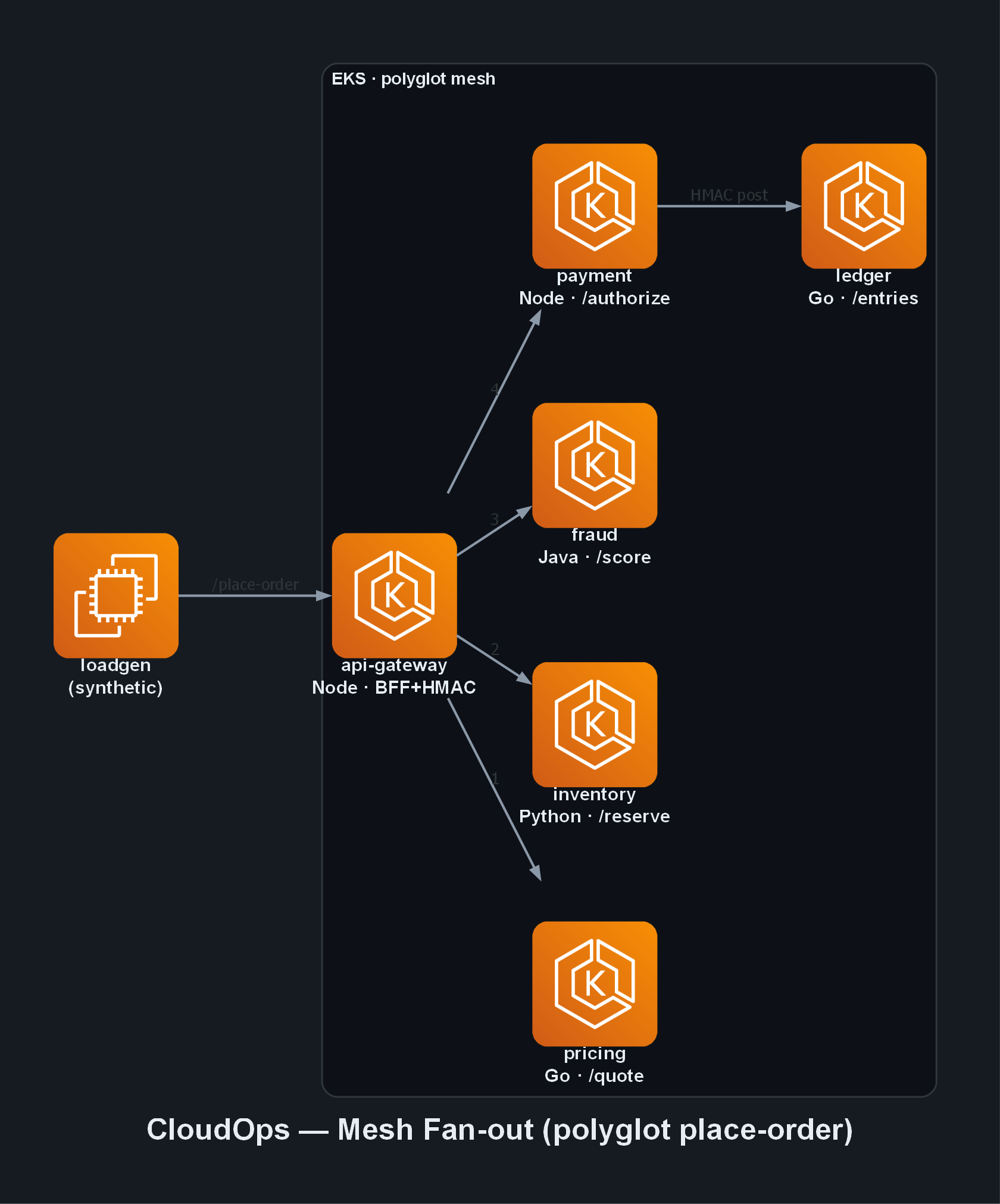

diagram 01 · mesh
One place-order crosses six languages: api-gateway → pricing → inventory → fraud → payment → ledger.

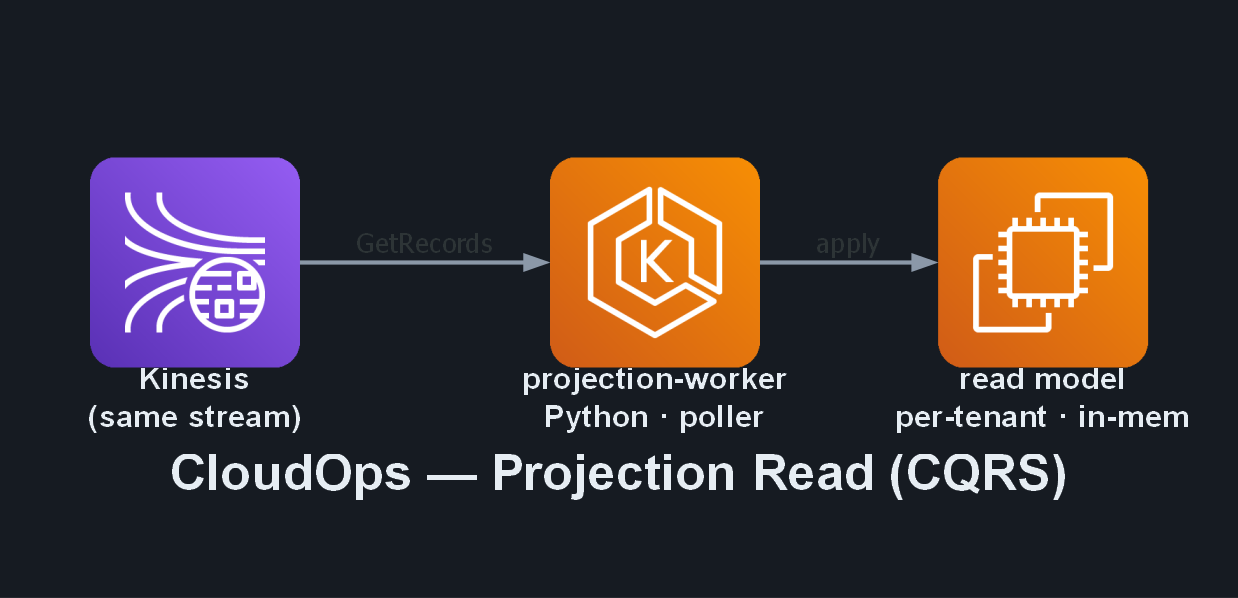

diagram 02 · cqrs
A second Kinesis consumer builds a per-tenant in-memory read model.

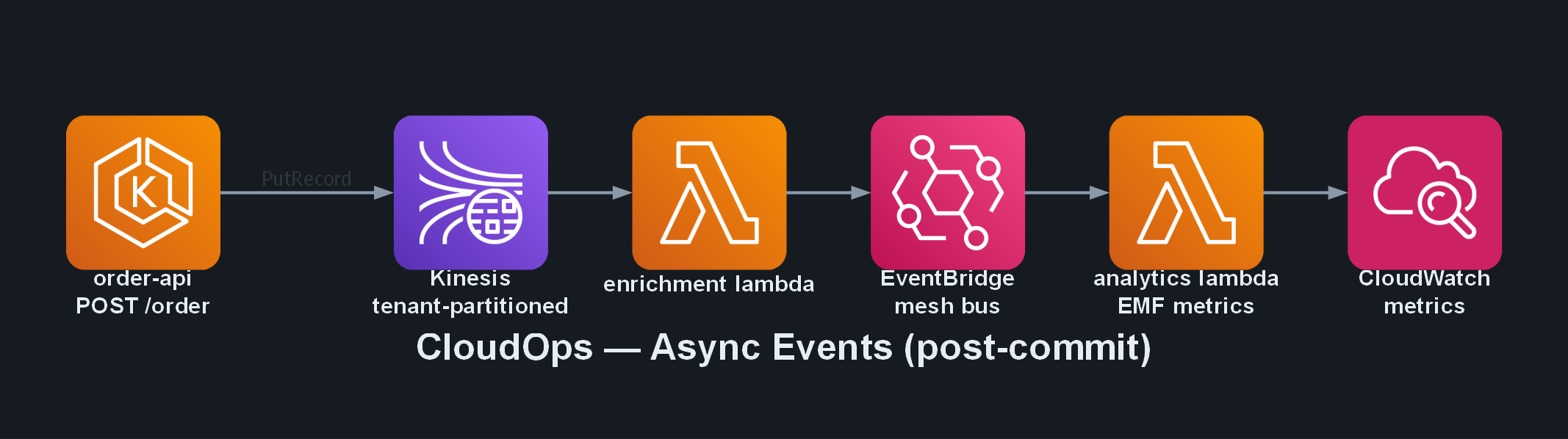

diagram 03 · async
order-api → Kinesis → enrichment lambda → EventBridge → analytics lambda (EMF metrics).

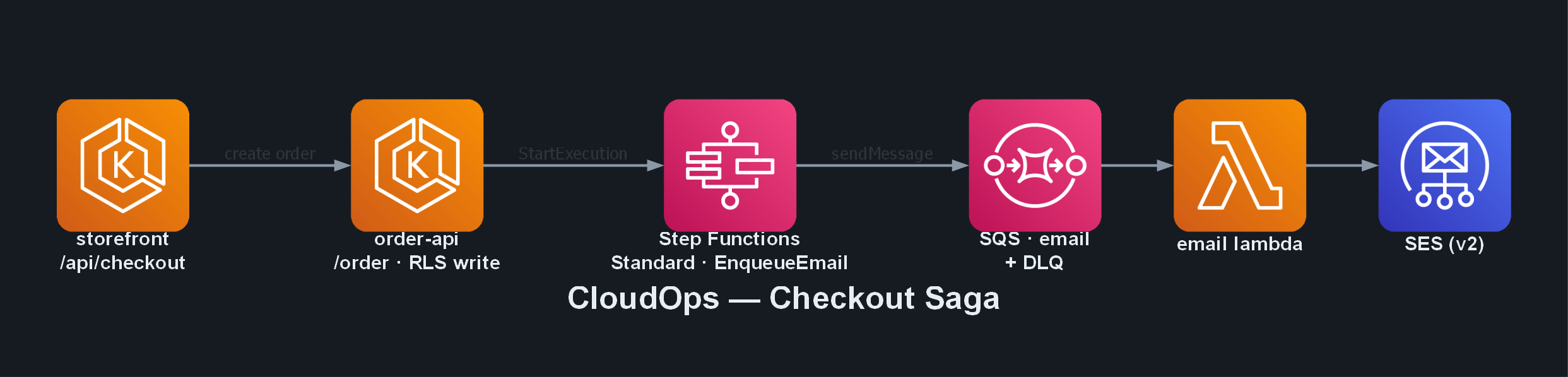

diagram 04 · saga
The storefront creates the order, then Step Functions enqueues the confirmation email.
cross-cutting

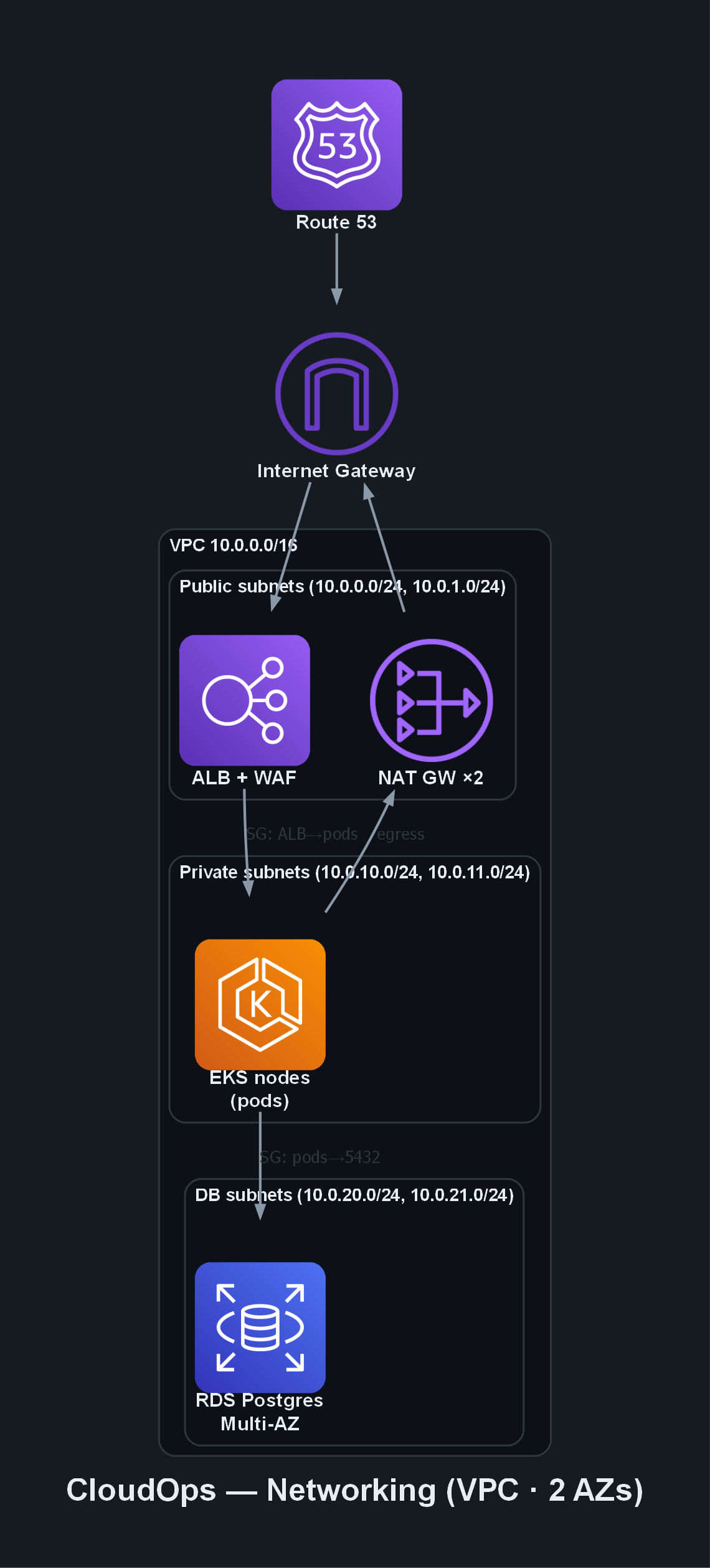

diagram 05 · networking
VPC 10.0.0.0/16 across two AZs — public, private, and DB subnets with SG-scoped paths.

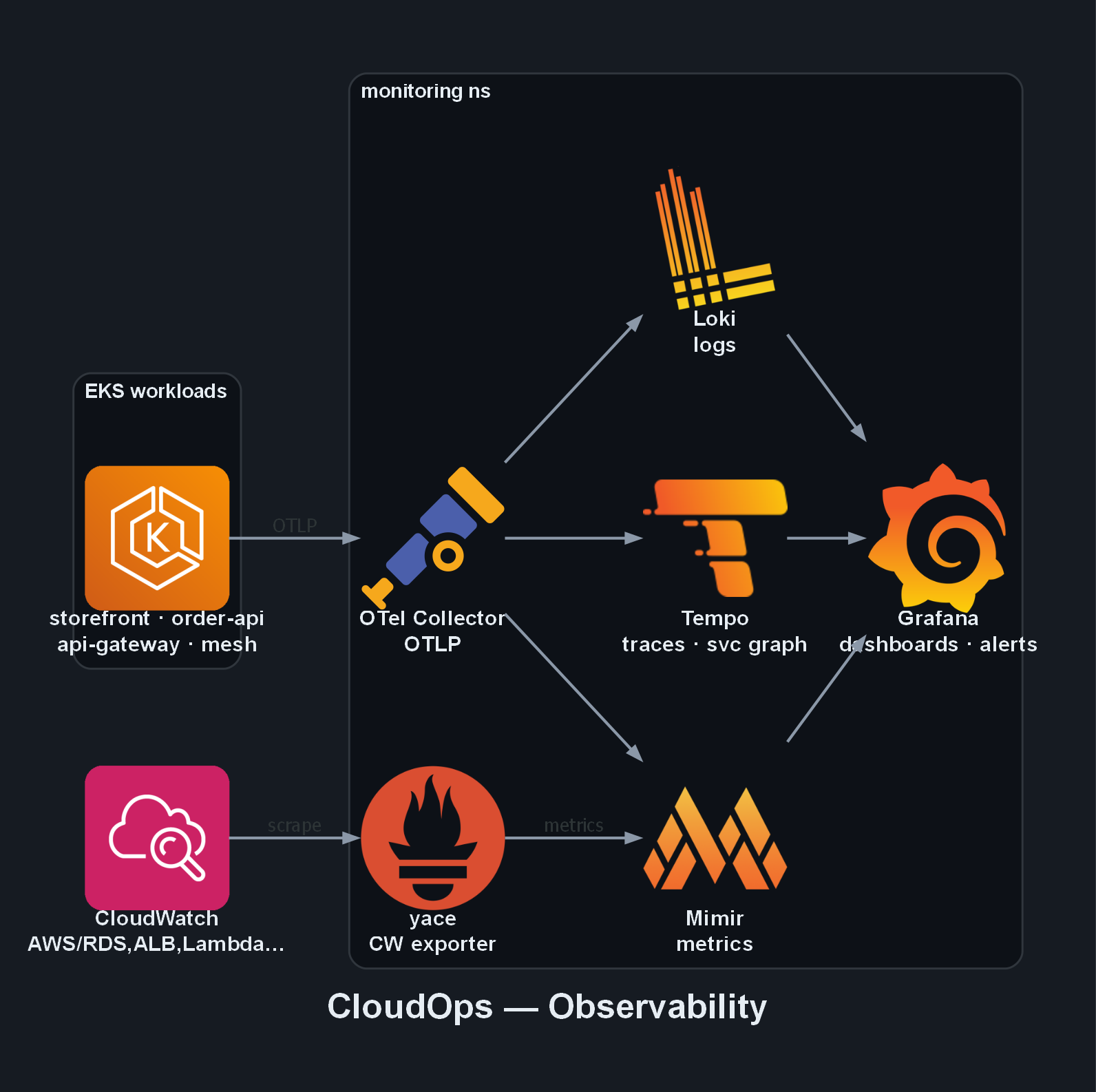

diagram 06 · observability
OTel and yace/CloudWatch feed Mimir, Loki, and Tempo — all surfaced in Grafana.

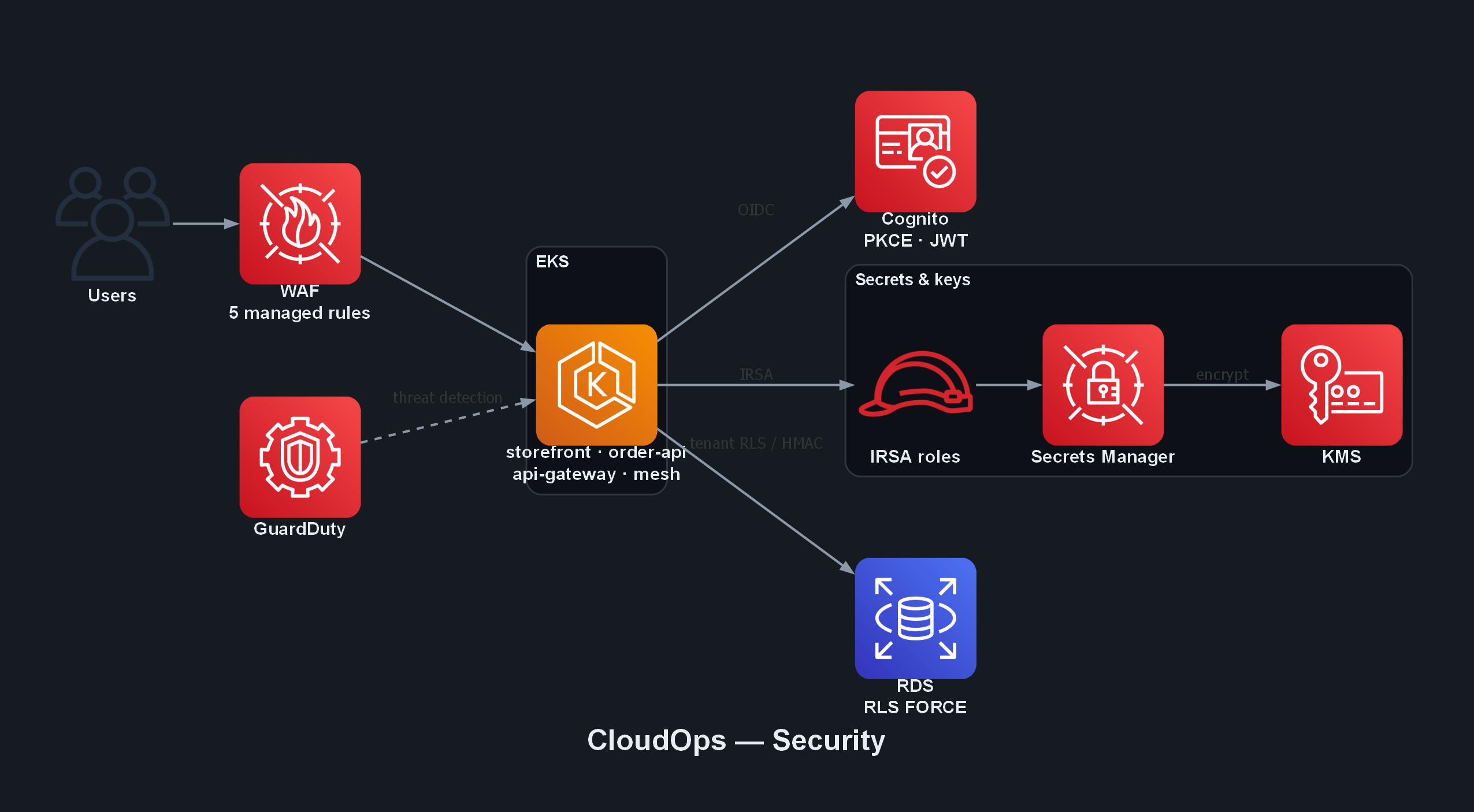

diagram 07 · security
WAF, Cognito, IRSA → Secrets → KMS, Postgres force-RLS, internal HMAC, and GuardDuty.

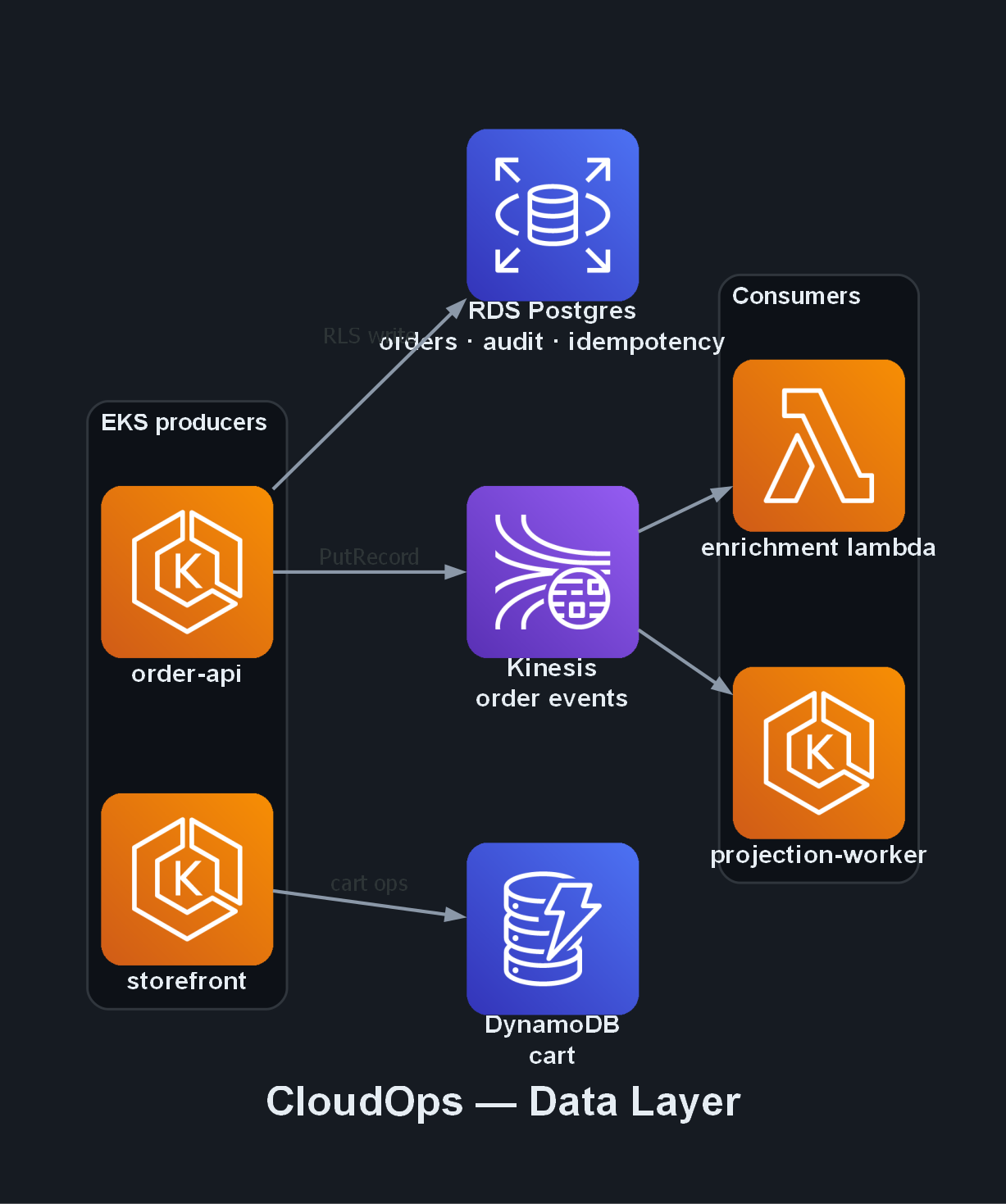

diagram 08 · data
RDS Postgres, the DynamoDB cart, and the Kinesis stream with its two consumers.
ship & provision

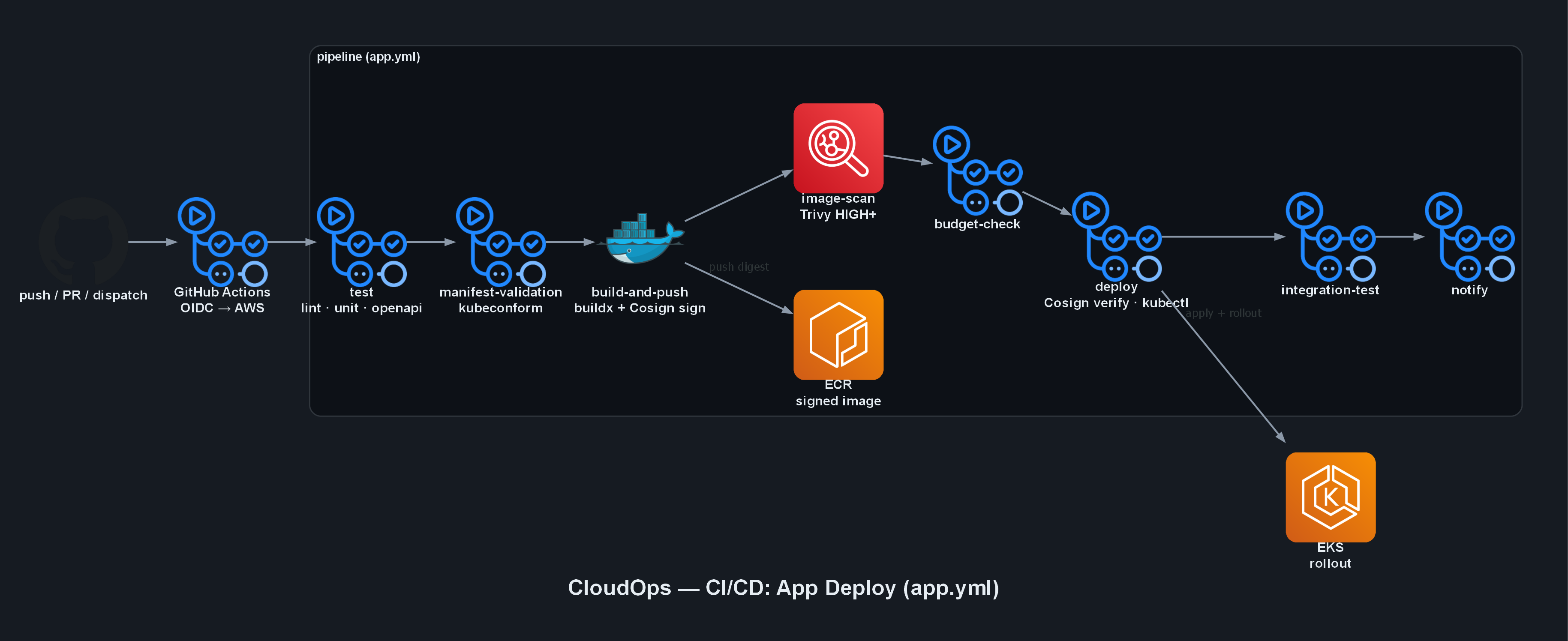

diagram 09 · app deploy
test → build + Cosign sign → ECR → Trivy scan → budget check → verified deploy → EKS rollout.

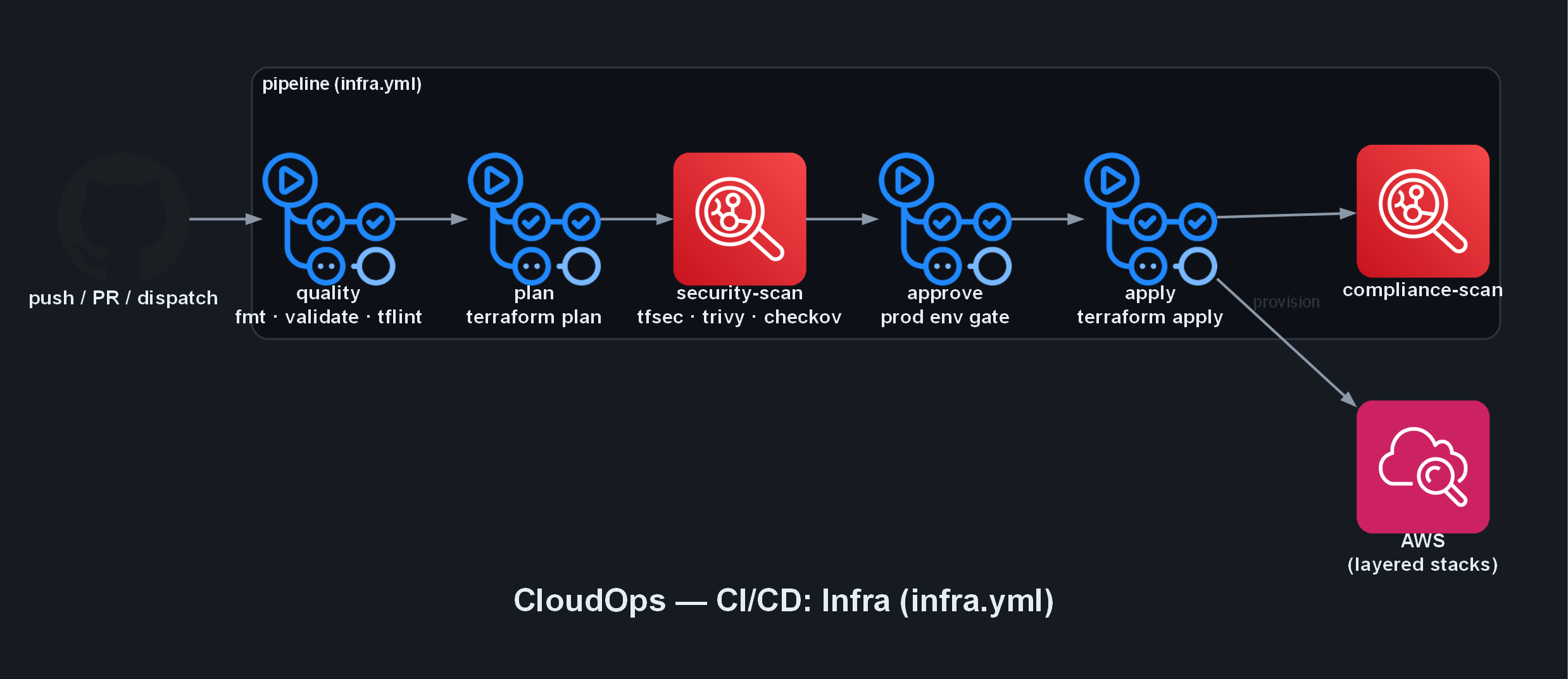

diagram 10 · infra
quality → plan → security-scan → prod approval gate → apply → compliance-scan.
